ID card is short for identification card, is a PVC card embedded EM4100 or compatible chip and antenna. The embedded chip is with 64-bit read only identity code, encoded by the chip manufacturer and the encoded content cannot be changed or erased. ID card is the first generation of RFID card which has been widely used in global world. Since ID card cannot be encrypted like IC card, the security level of ID card is not as high as IC card. However, 125KHz ID card has better penetration through metal, and the reading distance is farer, plus its markets inertia and its low cost, ID card takes up largest market share in current RFID card application, it is the most popular RFID card worldwide nowadays. It is also widely called proximity card, because it is mainly used in the application which doesn’t require a high level of security. Blank PVC ID card is printable to customers who are with card printer, which is more flexible to end users.
Feature:
1, Contactless, passive, printable, no need to use battery
2, using good quality copper wire to produce antenna, guarantees the stable function of the card reading performance, good reading distance up to 12cm,
3, All our blank cards are laminated with printing film to ensure clean and smooth surface, and to allow our blank cards to be printed by card printer easily and nicely
4, Unique ID number, 18 digital internal code printing is optional,
5, slot punching is optional
Specification:
Product Name | Blank ISO ID Card |
Model No. | C0T41W |
Material | PVC, copper coil |
Dimension | 85.5*54*0.84mm |
Protocol | ISO14443A |
Frequency | 125Khz |
Chip | EM4200, TK4100, SMC4001 |
Memory | 64 bit read only |
Working Mode | Passive |
Reading Range | 5-13cm, depends on reader |
Color | Pearl White, yellow white |
Weight | Approx.: 3g |
Temperature | -40℃ to + 80℃ |
Waterproof level | IP68 |
Personalization: | Laser Printed internal code, serial number, Silkscreen printing LOGO. |
Slot Hole | Round or oblong hole punching |
Packing: | 200pcs/box/1.2kgs, 2000pcs/carton/12.35kgs |
Carry | Pocket, wallet, |
Application:
Access control, ID badgae, membership card, logistics automation, industrial transponder.
Personalization:
For white card, normally there is only simple personalization as following:
1, silk screen printing logo,
2, laser engrave logo or UID, and series code.
3, painting UID or flat print UID, series codes.
4, punch slot hole,
5, laminating printing film,
6, cycle with elastic rope

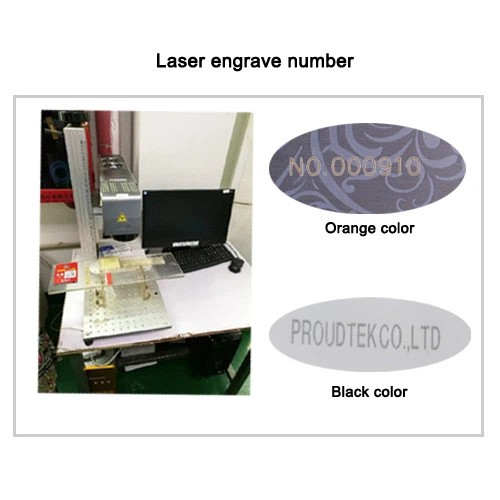

Proudtek Laser Engraving Technology Advantage:
1. We can laser engrave numbers in yellow color with automatic laser engraving line at high speed.
2. We can also laser engrave number or simple logo in black color
3. We can print UID and series codes together.
